How Pink Bull has moved away from the development of triumph at Monza

The aerodynamic challenges imposed by Monza have at all times pressured groups to design tailored fins. However because of the funds restrict and the introduction of the brand new Technical Laws this season, the groups have been requested to overview their plans for the 2022 version of the Italian Grand Prix.

In the long run, their method was very completely different from earlier years, and it’s attention-grabbing to notice that the one on the highest step of the rostrum was in all probability essentially the most cautious. Pink Bull didn’t observe the development of the package deal designed particularly for Monza. As a substitute, the purple bull selected to make use of the low downforce rear wing and beam wing utilized in Baku and Spa-Francorchamps.

Pink Bull Racing RB18 spoke wings comparability

Pink Bull did check a drag discount resolution although, with Sergio Pérez noticed with a rear wing that had the trailing fringe of the highest flap reduce off (highlighted in yellow on the prime of this text). This check was not conclusive, nonetheless, because the DRS swing issues, which had affected the crew on the finish of 2021, resurfaced.

In qualifying, the extra downforce may have been seen as an obstacle on the lengthy Monza straights. Nonetheless, this has not been an issue for Pink Bull because the RB18 has confirmed greater than as soon as this season to be quick on the straights and in a position to save time on corners. The crew had additionally determined to repair Max Verstappen’s automotive for the race, figuring out that the Dutchman had been penalized.

Racing with extra angled wings not solely helped protect tire life within the first stint, it additionally offered larger velocity achieve when activating the DRS to overhaul different riders.

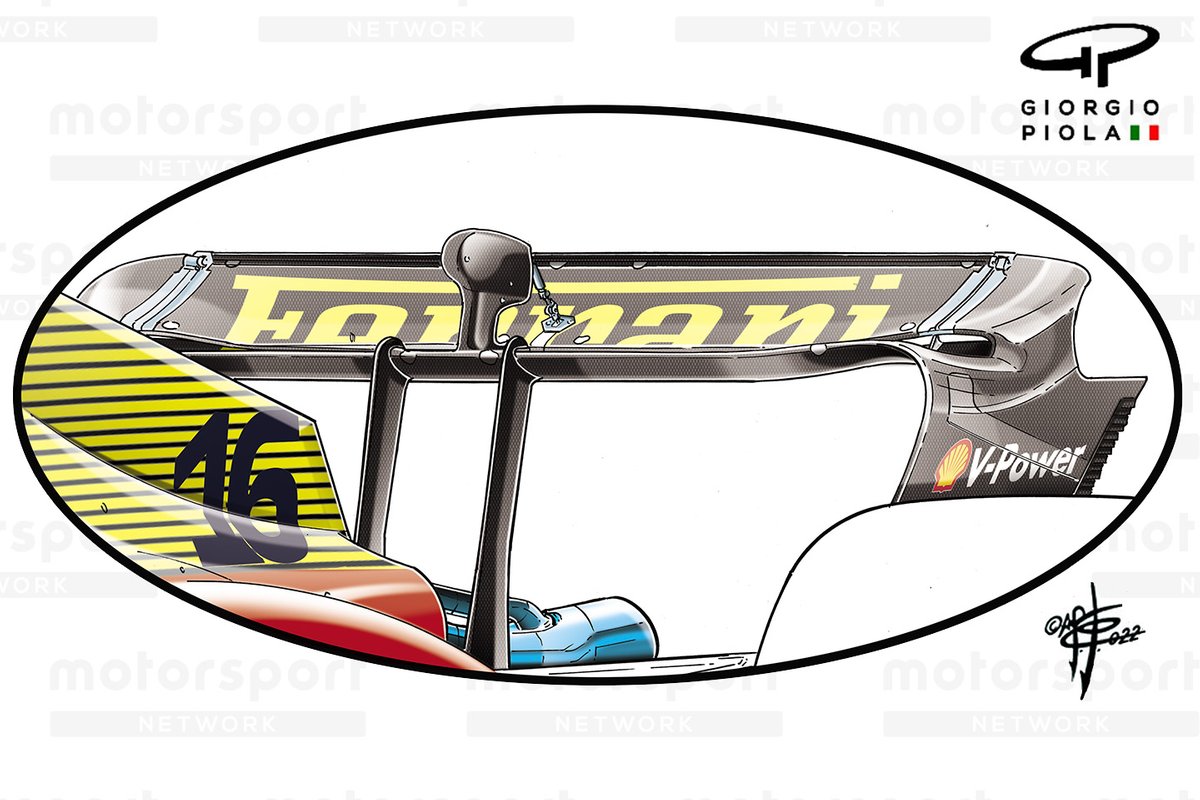

Ferrari F1-75 rear wing

Ferrari F1-75 rear wing

The Ferrari F1-75 diffuser coated

Ferrari F1-75 diffuser coated in “flow-vis”

The yellow livery wasn’t Ferrari’s solely novelty for the house race. The Scuderia was content material to check a low downforce rear wing at Spa-Francorchamps, this time utilizing it for your entire weekend. Moreover, they paired it with a single-element beam wing to additional scale back downforce and drag.

The fin is an easy evolution of the design utilized by Ferrari in 2022, with the spoon-shaped primary airplane getting flatter with every model. The flap components additionally take up much less and fewer allowable space, with designers aiming to cut back downforce and drag.

Ferrari F1-75 front wing

Ferrari F1-75 entrance wing

The entrance wing of the F1-75 additionally needed to be revised to accommodate the modifications made to the rear, with the highest flap trimmed to enhance stability (above).

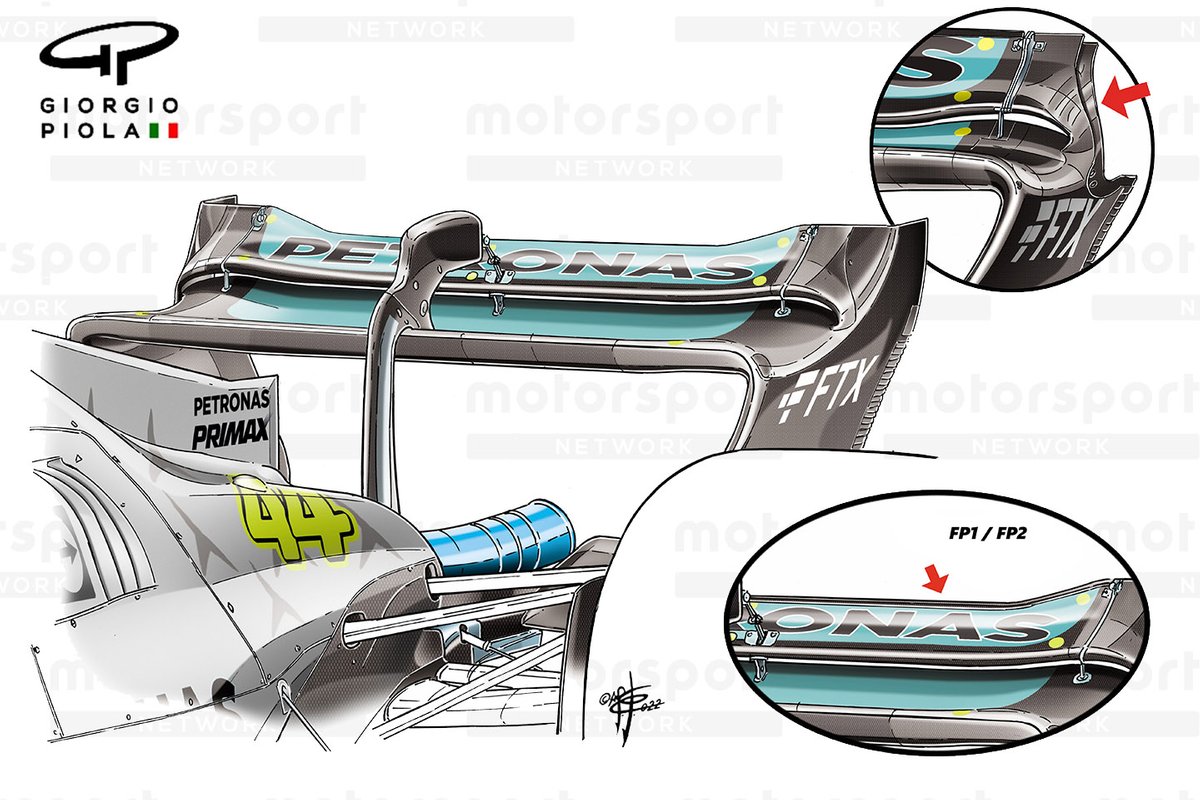

The rear wing of the Mercedes W13

The rear wing of the Mercedes W13

Mercedes is fighting its prime velocity this season, however the German crew hasn’t felt the necessity to introduce a bespoke rear wing at Monza to assist them scale back drag and pressure deficit. As a substitute, the W13’s decrease downforce rear wing configuration was merely modified.

This included reusing your entire tip of the top plate, which is interchangeable with the extra conventional reduce (inset above). Traditionally, this design is uncommon however, given the modifications in laws and the influence the curved plates have had on the aerodynamic effectivity of the fins, many new options are rising.

This design, additionally utilized by Alpine this season, modifies the vortex that varieties on the tip of the fin. The trailing fringe of the highest flap was additionally lowered considerably, with the addition of a Friday Gurney (inset above) earlier than the crew tried to cut back drag. To additional scale back this, the fin was coupled with a brand new single factor beam wing (beneath).

The beam wing of the Mercedes W13

The beam wing of the Mercedes W13

Rear wing of the Alfa Romeo C42

Rear wing of the Alfa Romeo C42

Alfa Romeo continued to make use of the low downforce rear wing launched on the Belgian GP which options distinctive straight ends. Nonetheless, in an try to cut back downforce, the trailing fringe of the highest flap was reduce (highlighted in yellow above). To attain this and preserve the place of the DRS, the central part of the wing needed to stay intact.

The rear wing of the AlphaTauri AT03 in Spa

The rear wing of the AlphaTauri AT03 in Spa

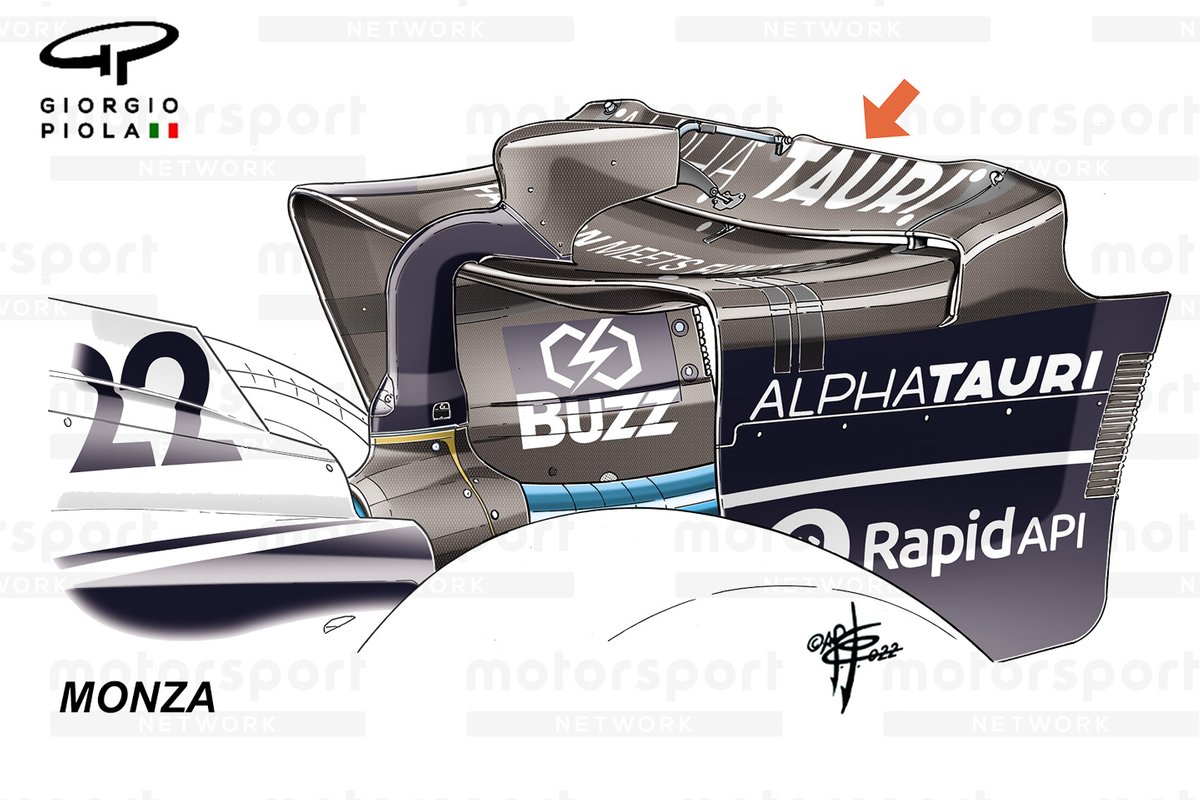

The rear wing of the AlphaTauri AT03 in Monza

The rear wing of the AlphaTauri AT03 in Monza

AlphaTauri didn’t have a tailored rear wing for Monza, however the crew opted to make modifications to the answer launched in Belgium with two modifications: on the one hand, the trailing fringe of the higher flap (above) was lowered, on the opposite. a single factor was used on the flange of the beam (beneath).

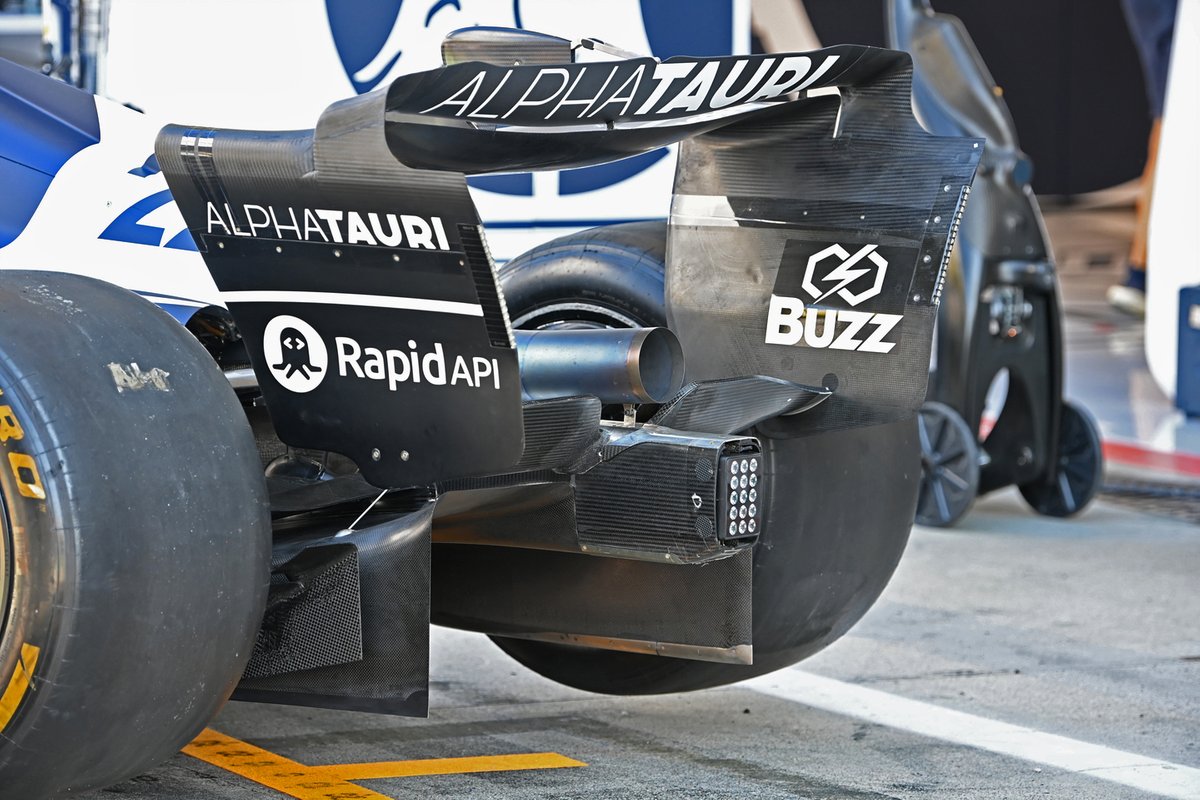

The rear of the AlphaTauri AT03

The rear of the AlphaTauri AT03

The rear wing of the Aston Martin AMR22

The rear wing of the Aston Martin AMR22

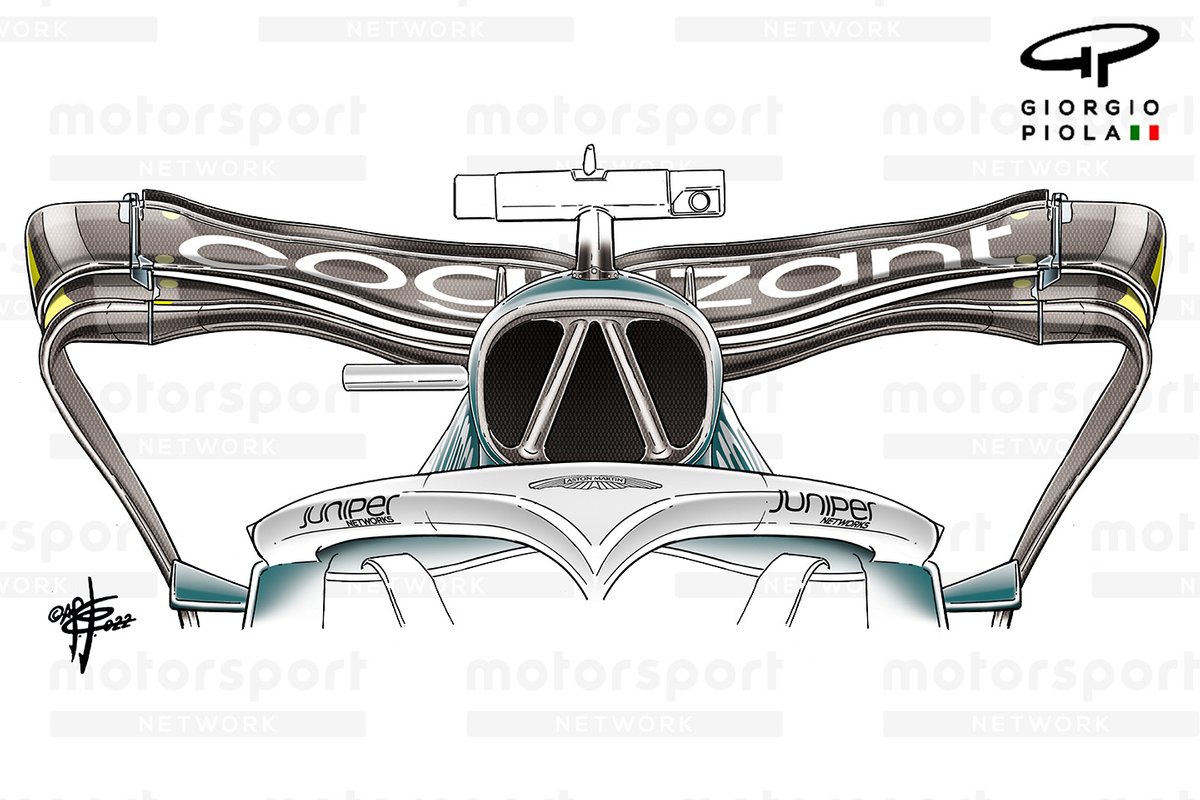

Aston Martin had already proven us a preview of the rear wing that might have been used at Monza a couple of weeks in the past throughout the Belgian Grand Prix. The design is by far essentially the most excessive of these proven, with an intricate form that echoes Monza’s fins underneath the outdated laws. A discount in aileron angle of assault can also be vital within the designer’s makes an attempt to cut back downforce and drag.

In contrast to others, the British crew didn’t select to cut back the variety of components of its beam wing, preserving the two-element configuration.
